AquaFlex™ Outdoor Actuator Valve

5-Position Remote Valve for 3rd-Party AMI Systems (AVS)

PRODUCT DETAILS

The AquaFlex™ is an IP68-rated remote disconnect ball valve designed to integrate with any existing AMI platform, as an AMI ready valve. The AquaFlex™ supports five valve positions (OPEN, CLOSED, REDUCED FLOW 1, 2, 3). AMI ready means that any AMI system can integrate the AquaFlex™ using the Aquana standard AquaFlex™ protocol. Contact us for integration protocol docs.

With Aquana, there is a way to stay in your office and remotely shut off and turn on customers’ water. Our remote-control smart valves, along with our cloud-based software, create automated workflows that save you time and money and keep your employees safe while eliminating costly truck rolls.

Features

5 Positions (Open, Closed, Reduced Flow 1, 2, & 3)
Operate Directly from a Compatible 3rd-Party AMI System
Male-Female Swivel Nut Valve Body
Small Mechanical Form Factor
IP68-Rated for Submersion
20-Year Battery Life
AMI Ready Valve

Request a Quote



AMI Compatible

Each AquaFlex includes a 3’ serial cable designed with industry standard Geospace Hydroconn® AMR3 (Nicor) or AMR4 (Itron compatible) connections, compatible with most existing AMI endpoints.



Five Valve Positions

Positions are Open, Closed, Reduced Flow 1, 2, 3. Position Reduced 1 is configured for trickle flow for utilities not wanting to disconnect water service fully. Customize other positions for more reduced flow rates for conservation compliance or other applications.



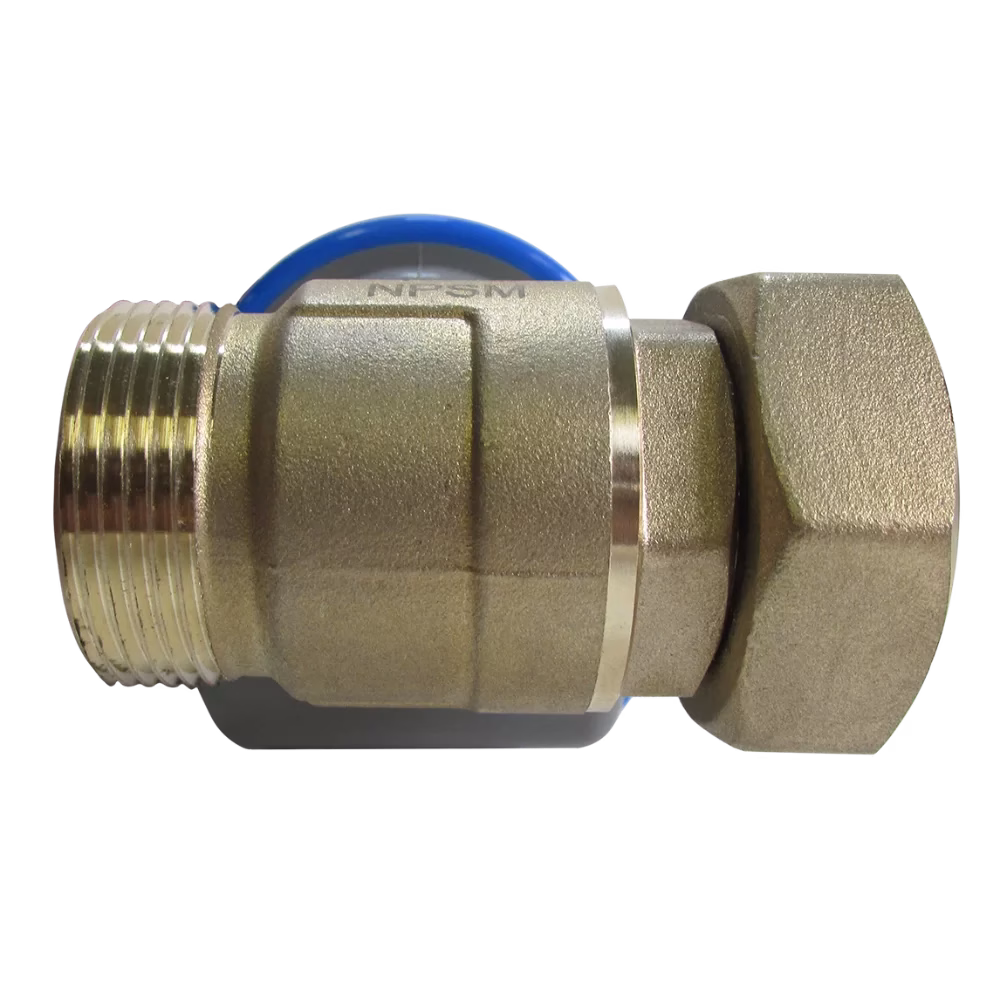

Swivel Nut

Each residential size valve is designed with NPSM threaded male and female swivel nut (1/2”, 3/4”, 1”). This allows easy installation directly to meter. Each valve body is NSF61/ lead-free certified with a brass body and stainless steel ball.



Simple Servicing

The AquaFlex actuator can be serviced separately from the valve body, enabling you to pre-install a valve body without a controller until valve control is needed, or service them independently.

Specifications

Valve Positions	Open, Closed, Reduced-1 (1-2GPM), Reduced-2 (Custom), Reduced-3 (Custom)
Valve Body Material	Brass Body with Stainless Steel Ball
Case Material	Estaloc 59300
Communication Interface	AMR4 Standard (Itron Compatible) or AMR3 Optional (Nicor)
Max Operating Pressure	150psi
Operating Temperature	-22°F – 140°F (-30°C – 60°C)
Min/Max Water Temperature	Min 32.1°F (0.5°C) \| Max 140°F (60°C)
Ratings/Certifications	NSF61/Leadfree, IP68
Power	3.6V C-Cell Lithium Metal Battery
Battery Life	20 Years (Based on 2 Position Changes per Month)
Warranty	20-Year Limited Warranty (10-Year Full Replacement, 10-Year Prorated)

Dimensions

Model	Valve Bore Size (in.)	Connection Size (in.)	Threads	Valve Lay Length (in.)	Height (in.)	Width (in.)
AVS ½”	½”	¾” NPSM	M/F Swivel	2.30”	5.31”	3.52”
AVS ¾”	¾”	1” NPSM	M/F Swivel	2.30”	5.55”	3.52”
AVS 1”	1”	1.25” NPSM	M/F Swivel	2.87”	5.95”	3.52”
