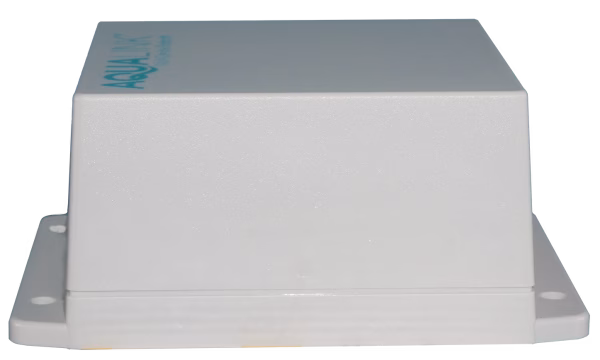

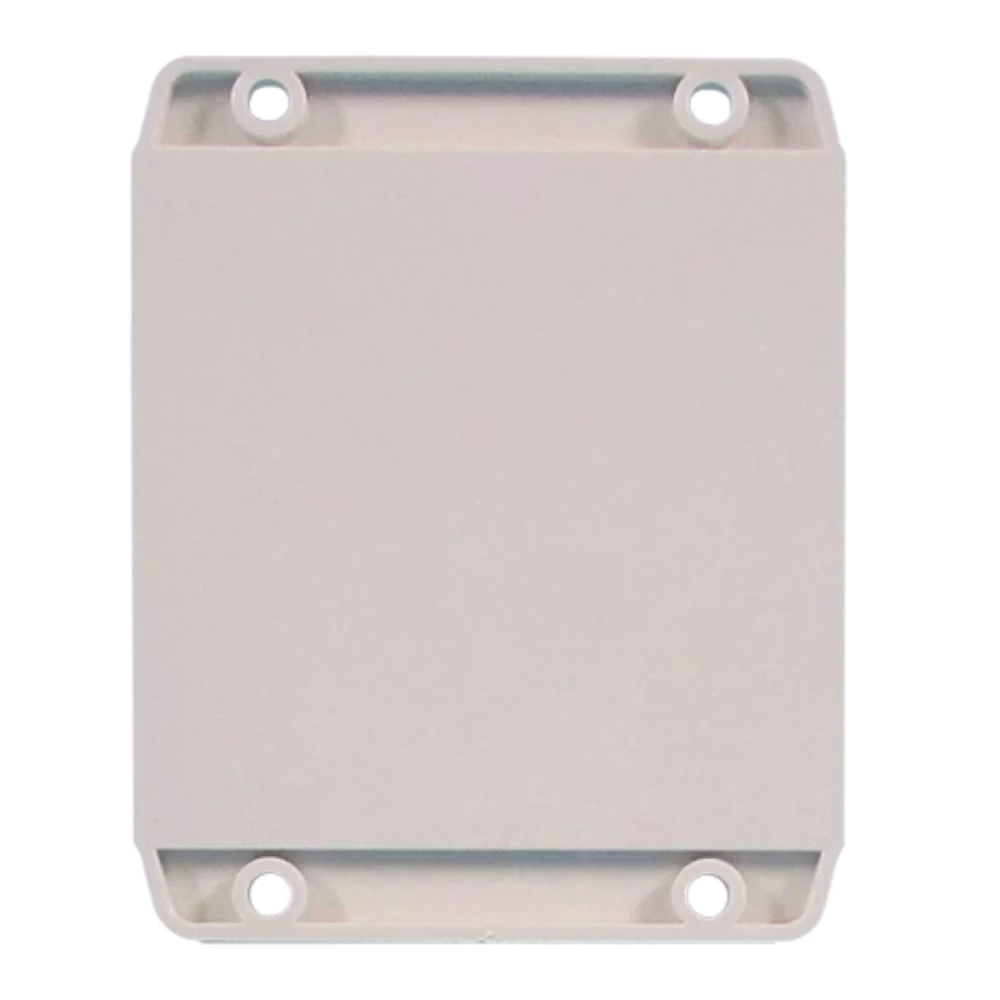

AquaLink™ Multi-Device Endpoint
Multi-Device Water IoT Endpoint (MDE)
PRODUCT DETAILS
The AquaLink™ multi-device water IoT endpoint is a multi-functional LoRaWAN transceiver delivering multi-unit submetering with advanced leak protection. The AquaLink™ offers flexible configurations, including single cold water meter per suite, hot and cold water meter per suite, and single cold water meters across up to four suites.
Features
- Optional Rope or Contact Leak Sensors
- Supports up to Four (4) Devices, Including Third-Party Water Meters, Rope Sensors, and the AquaFlex™ Remote-Control Water Valve
- Expanded Submetering for an Individual Unit or up to Four Units Through a Single Device
- On-Device Leak and Burst Detection with Optional Auto-Shutoff Capability and Optional Rope or Contact Leak Sensors
Specifications
|
Communication Interface
|
LoRaWAN (US915) with Ranges up to 10 Miles (15 km)
|
|
Power & Battery
|
Type-C Pre-Installed, Field-Replaceable Battery with Optional USB-C Power Supply
|
|
Operating Temperature
|
-22°F – 140°F (-30°C – 60°C)
|
|
Storage Temperature
|
-40°F – 140°F
|
|
Operating Humidity
|
Up to 90% (Non-Condensing)
|
|
Ingress Protection
|
IP20, Outdoor Dry Locations Only
|
|
Case Material
|
ABS Plastic
|
|
Ratings/Certifications
|
FCC, IC, UL 2043
|
|
Maximum Cable Length
|
AquaFlex™: 300ft
Pulse Meter: 300ft Aquana Rope Leak Sensor: 300ft Encoded Meter: 300ft |
|
Submeter Compatibility
|
Pulse and Encoded Output Submeters
UI-1203 Sensus-Based with Extended Alarms (Dry, Reverse Flow, Leak, Burst) GWF |
|
Warranty
|
10-Year Limited Warranty (5-Year Full Replacement, 5-Year Prorated)
|
|
Optional Accessories
|
Water Rope Sensor (3ft Standard, Available up to 300ft)
AquaFlex™ Remote Valve (½”, ¾”, 1”) |
Example Configurations
|
|
Port 1
|
Port 2
|
Port 3
|
Port 4
|
Rope Sensor
|
|
Single Cold Water Submeter/Suite
|
Meter
|
–
|
–
|
–
|
–
|
|
Single Cold Water Submeter + Rope Sensor/Suite
|
Meter
|
–
|
–
|
–
|
Yes
|
|
Single Cold Water Submeter + Rope Sensor + Remote Valve/Suite
|
Meter
|
AVS Valve
|
–
|
–
|
Yes
|
|
Hot & Cold Water Submeter + Rope Sensor + Remote Valve/Suite
|
Cold Meter
|
Hot Meter
|
AVS Valve
|
–
|
Yes
|
|
Cold Water Submeters for up to 4 Suites
|
Cold Meter
|
Cold Meter
|
Cold Meter
|
Cold Meter
|
–
|
|
Hot/Cold Water Submeters for up to 2 Suites
|
Cold Meter
|
Hot Meter
|
Cold Meter
|
Hot Meter
|
–
|
Resources
How We Add Value
Leak and Burst Detection
Tamper Detection
Easy Installation
Multi-Unit Submetering
Learn More About AquaLink™
Download the Aquana Platform Overview and AquaLink™ Datasheet for more details.
