Insight Fiber Optic Downhole Tool

PRODUCT DETAILS

Insight features three-component, all-optical downhole shuttles, specializing in multi-level, real-time, continuous, high-definition seismic acquisition.

Features

• Passive, all-optical downhole sensor network – no electronics downhole.
• Years-long operational lifetime @ 150 °C.
• 3-each high dynamic range optical accelerometers in each shuttle.
• Low noise, linear point sensing enables accurate recording of low-amplitude microseismic events.
• Slim hole shuttle 2.50-inch OD – less than 63 mm.
• Operates in any orientation.
• Solid-machined shuttle body minimizes mechanical resonance.
• High-resolution and high-frequency recording.
• Direct connection sub arrays, armored wireline.

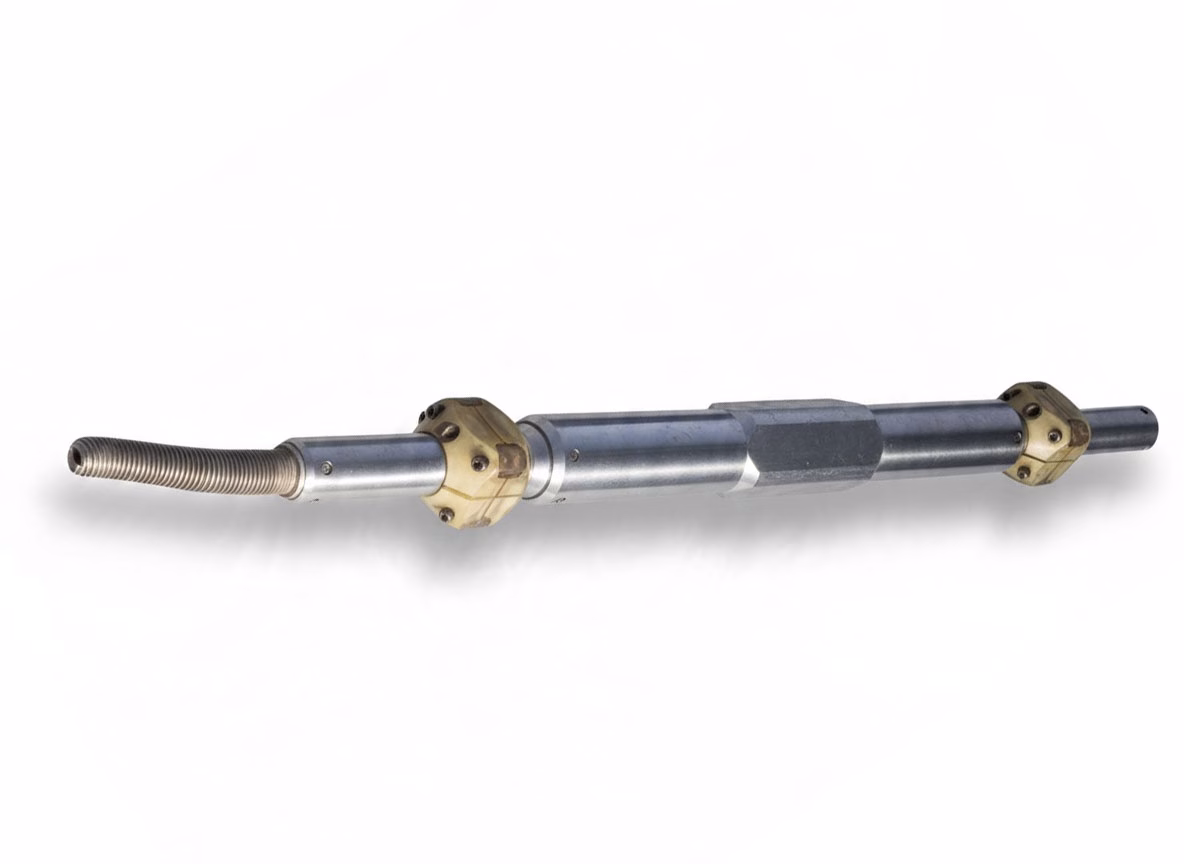

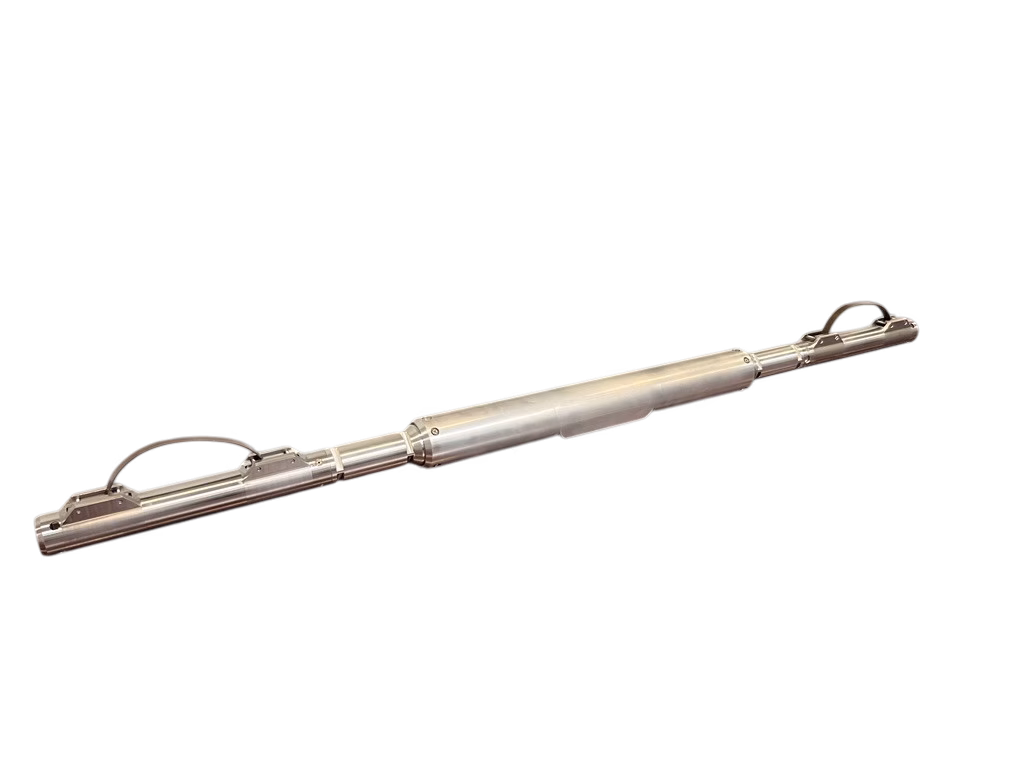

• Magnetic and bow-spring clamps available.
• Supports wireline tools below the array (Gamma, CCL, Well Tractor).
• Distance between shuttles from meters to kilometers.
• Maximum temperature rating 150°C.
• Maximum pressure rating 20,000 psi.
• Capable of > 100 shuttle levels per well deployment.
• Compact, modular topside interrogator.

FIRST BREAK ARTICLE

Using Advanced Fibre-Optic Point Sensors at High Temperatures to Expand Downhole Deployment Use Cases

As we look towards the future of cleaner energy production on this planet, geophysical methods are now being tasked to manage risk in new markets beyond oil and gas exploration, and the hostile environments for our geophysical sensors are simply multiplying.
