LAND PRODUCTS

BN BATTERIES

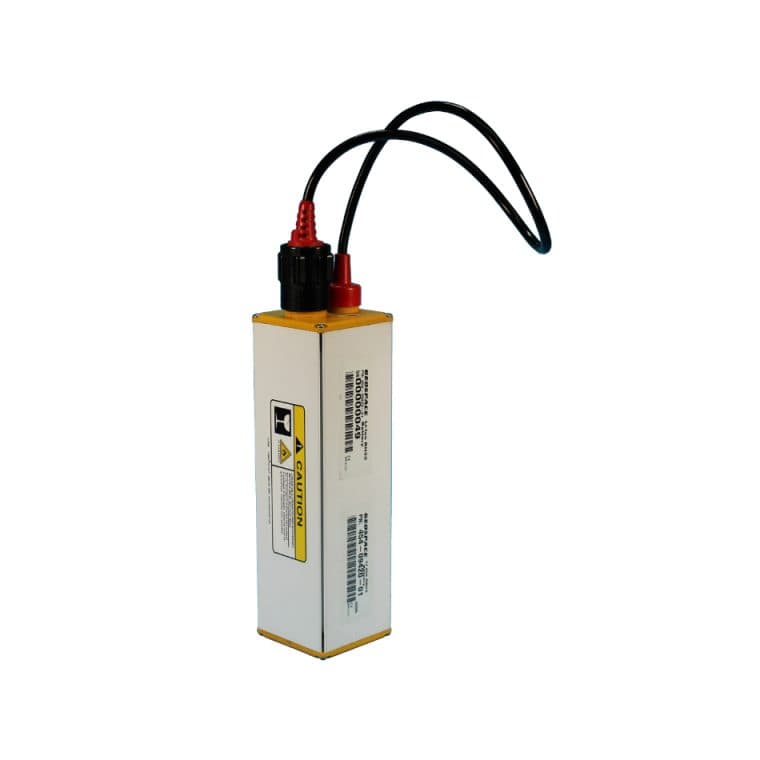

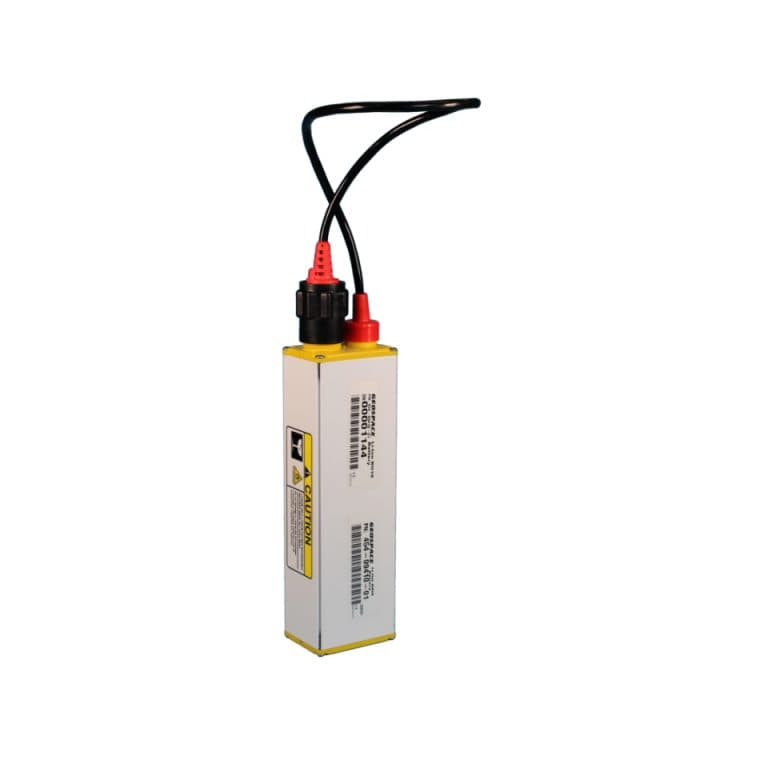

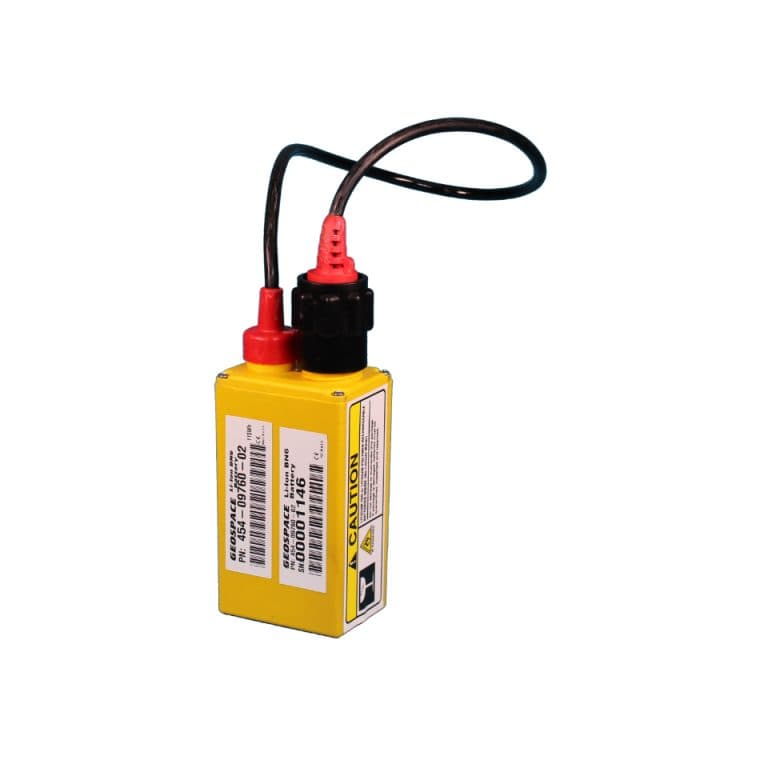

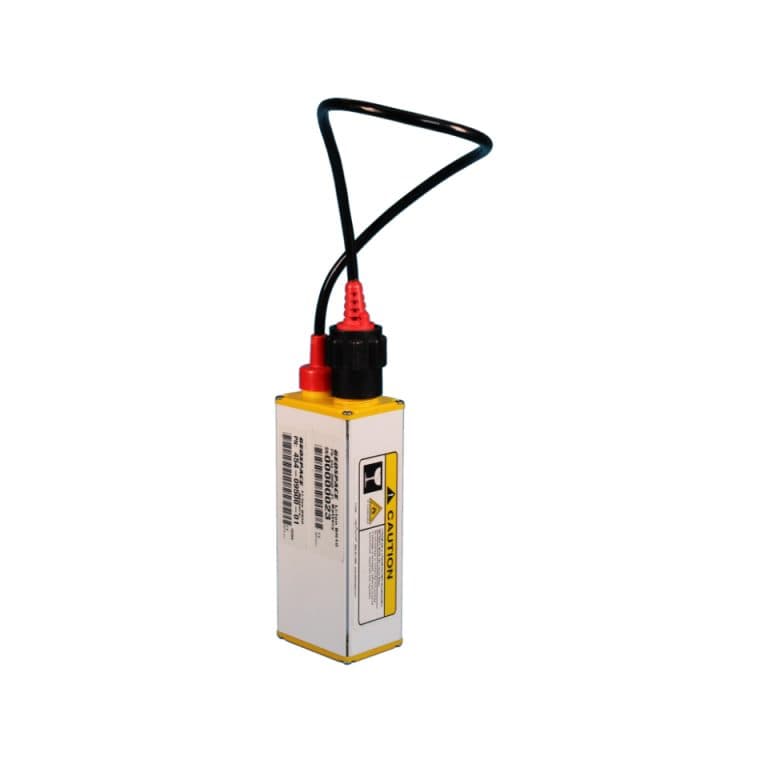

BN Series Batteries for GSR/GSX

PRODUCT DETAILS

The BN Series Batteries are designed to work with the GSR/GSX data recorders. These batteries provide a light-weight and easy-to-manage power solution for the GSR/GSX systems.

FEATURES

  • The GSX, powered by the BN6 Battery, will record 24 hrs/day for 30 days
  • The GSX, powered by the BN10 Battery, will record 24 hrs/day for 50 days
  • The GSX3, powered by the BN18 Battery, will record 24 hrs/day for 50 days
  • The GSX4, powered by the BN32 Battery, will record 24 hrs/day for 56 days
  • The GSB1 with an added BN32 Battery will record 24 hrs./day for an additional 400 days.
  • The GSB3 with an added BN32 Battery will record 24 hrs./day for an additional 200 days.
BN-6@2x

SPECIFICATIONS – Battery Model:

BN6

Length 6.0 in [plus whip] (15.24 cm) Width 3.4 in (8.64 cm) Height 2.5 in (6.35 cm) Weight 2.4 lbs (1.09 kg) Power Output 115 WHr

BN10

Length 8.75 in [plus whip] (22.23 cm) Width 3.4 in (8.64 cm) Height 2.5 in (6.35 cm) Weight 4.8 lbs (2.18 kg) Power Output 192 WHr

BN18

Length 11.63 in [plus whip] (29.53 cm) Width 3.4 in (8.64 cm) Height 2.5 in (6.35 cm) Weight 6.6 lbs (2.99 kg) Power Output 308 WHr

BN32

Length 12.0 in [plus whip] (30.48 cm) Width 3.4 in (8.64 cm) Height 3.4 in (8.64 cm) Weight 8.80 lbs (4.00 kg) Power Output 473.6 WHr
