DOWNHOLE

GEOPHONE SEISCABLE

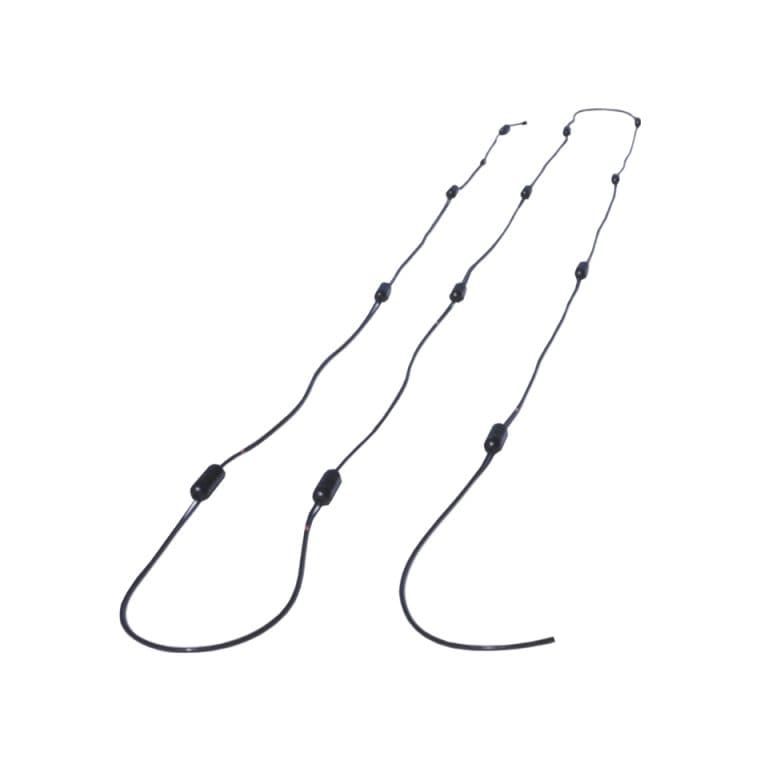

Geophone SeisCable

PRODUCT DETAILS

Geospace Offshore is a global leader in the design and manufacture of cables and umbilical products for the oil & gas, oceanographic, scientific, military, and specialty-cable markets. We produce technically challenging and operationally reliable cabling and umbilical solutions for electrical, fiber optic, electro-mechanical, and electro-hydraulic applications. Our manufacturing facilities are consciously designed to handle custom and near-custom work in a flexible, timely, and cost-effective manner.

FEATURES

  • Designed for high-resolution, permanent, or retrievable borehole seismic acquisition
  • Sensor pods are molded inline with the cable, allowing for connectorless cables
  • Ideal for high-resolution engineering seismology
  • Perfect for near-surface geophysical borehole data recording
  • Ideal for permanent microseismic monitoring applications
SeisCable(2)@2x

GENERAL SPECIFICATIONS

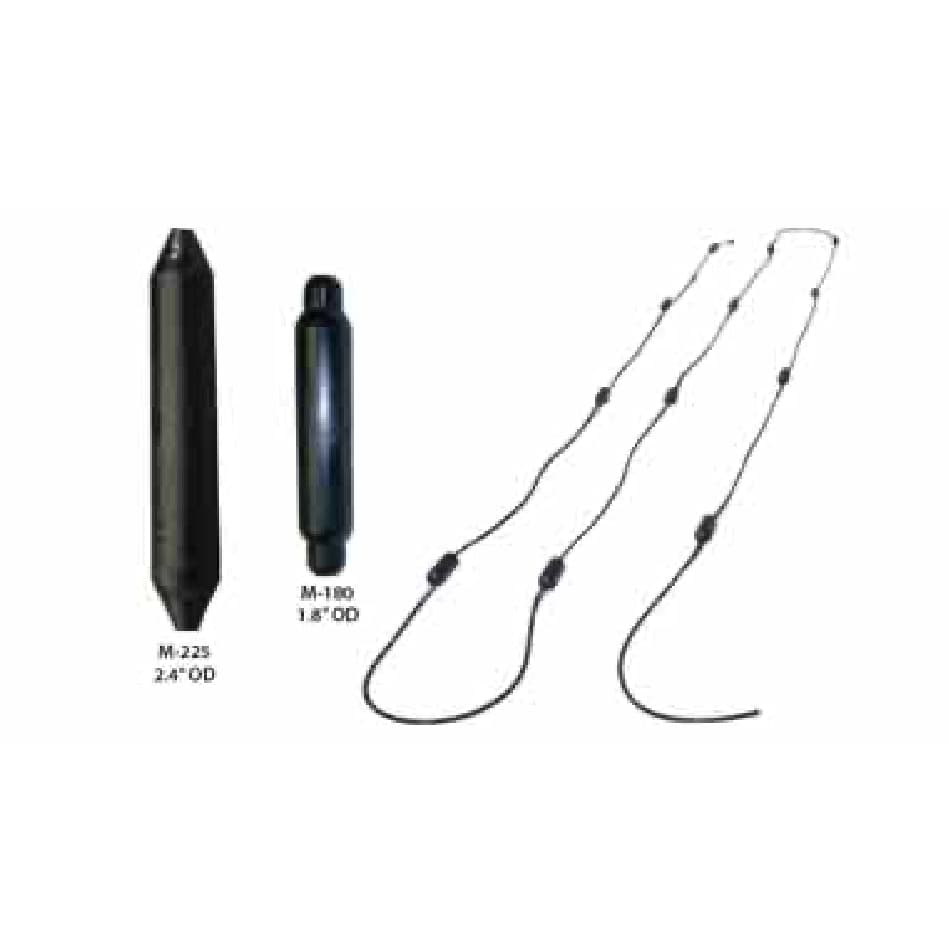

Type of Geophone M-225,OMNI 2400 two in series M-180, GS-14-LS two in series
Sensitivity 2.04 V/in/sec 0.82 V/in/sec
Natural Frequency 15 Hz 24 Hz
Damping 68% 40%
DC Resistance 4,110 Ω 3,963 Ω
Maximum Temperature Rating 70° C 70° C
Maximum Operating Pressure 2,000 psi 2,000 psi

SENSOR POD DIMENSIONS

Diameter 6.0 cm (2.4 in.) 4.6 cm (1.8 in.)
Length 37.1 cm (14.6 in.) 24.1 cm (9.5 in.)
Number of Sensor Pods customer specified up to 96 each 1C levels or 32 each 3C levels
