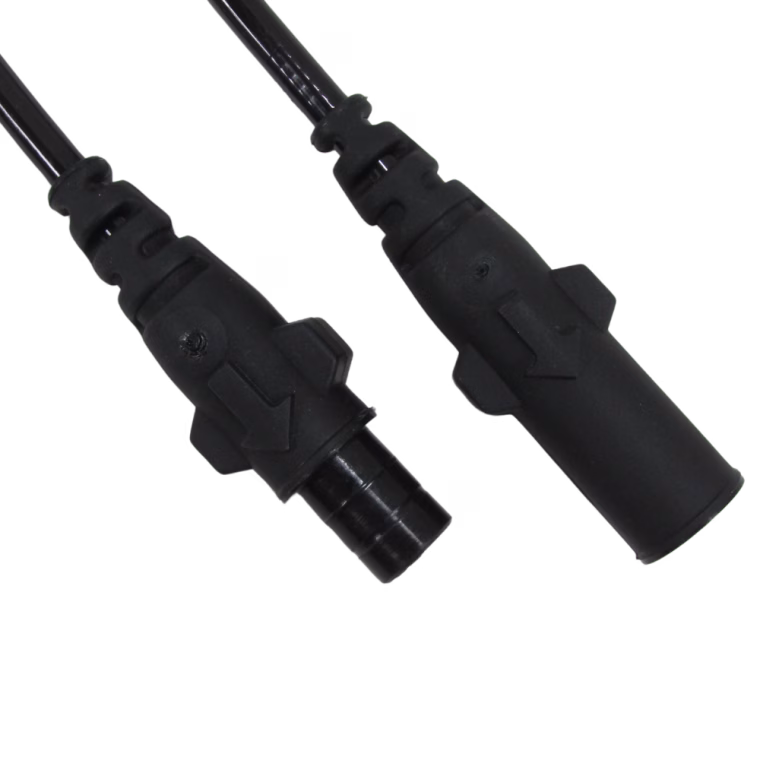

HYDROCONN® Series III
PRODUCT DETAILS
Geospace Technologies offers a complete line of AMI water meter connector cables, specifically designed and manufactured to meet the rugged requirements for in-pit, underwater applications. Geospace’s unique design ensures total moisture sealing for even the toughest underwater environments, yet they are easily re-entered for troubleshooting a transponder or for a meter swap-out.
Features
- Special manufacturing process designed to vastly improve cable/connectors reliability for rugged field applications
- Post molded strain relief from cable to connector
- Internal/external totally bonded connector
- TPU-extruded cable jacket and molded connector
Specifications
|
Connector Material
|
Flexible TPU and glass-filled TPU
|
|
Contacts
|
Machined 22 AWG Copper Alloy
|
|
Contact Plating
|
5μ inches gold over 50μ Ni
|
|
Insulator
|
glass-filled thermoplastic
|
|
Current Rating 7
|
7.5 amps
|
|
Voltage Rating
|
300 V AC/RMS 50Hz
|
|
Insulation Resistance
|
5000 MΩ at 500 VDC
|
|
Temperature Rating
|
-20°C to +80°C, Low temp cable flexibility
|
|
Cable Jacket
|
TPU
|
|
Pressure Rating
|
Submersible to 30 meters
|
