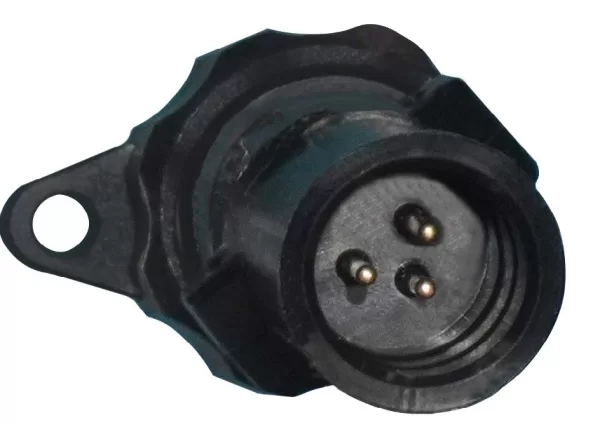

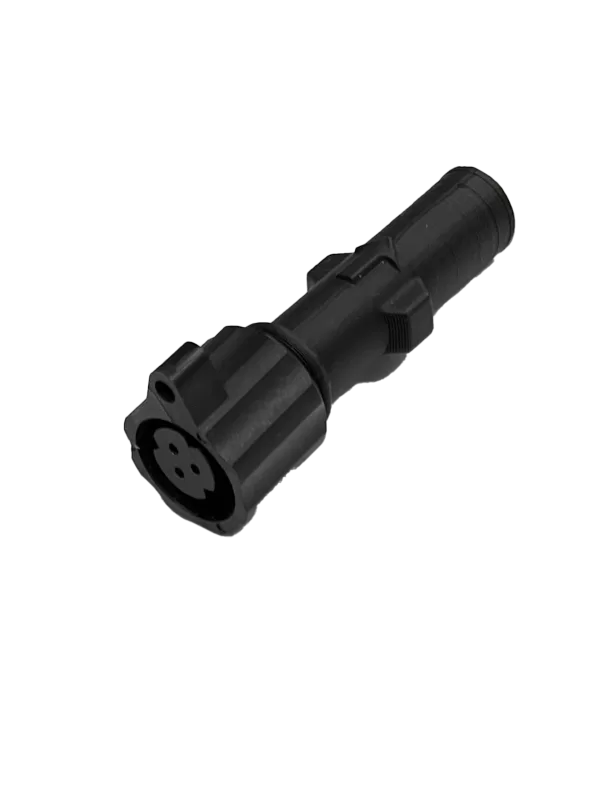

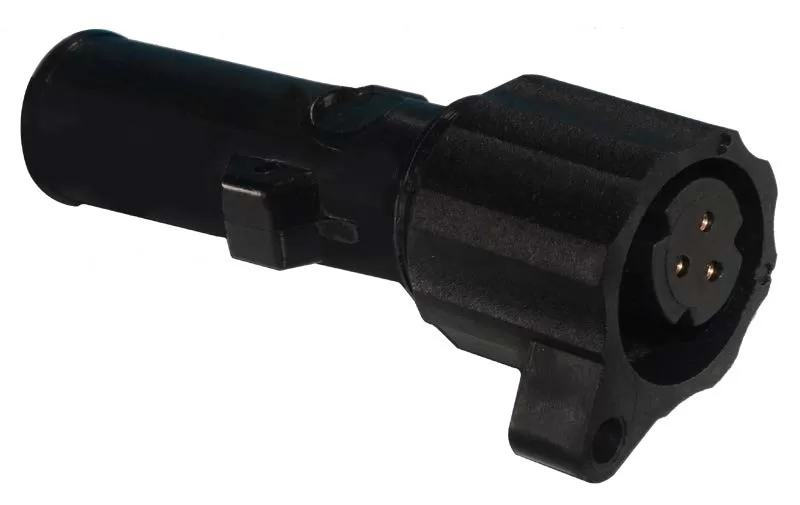

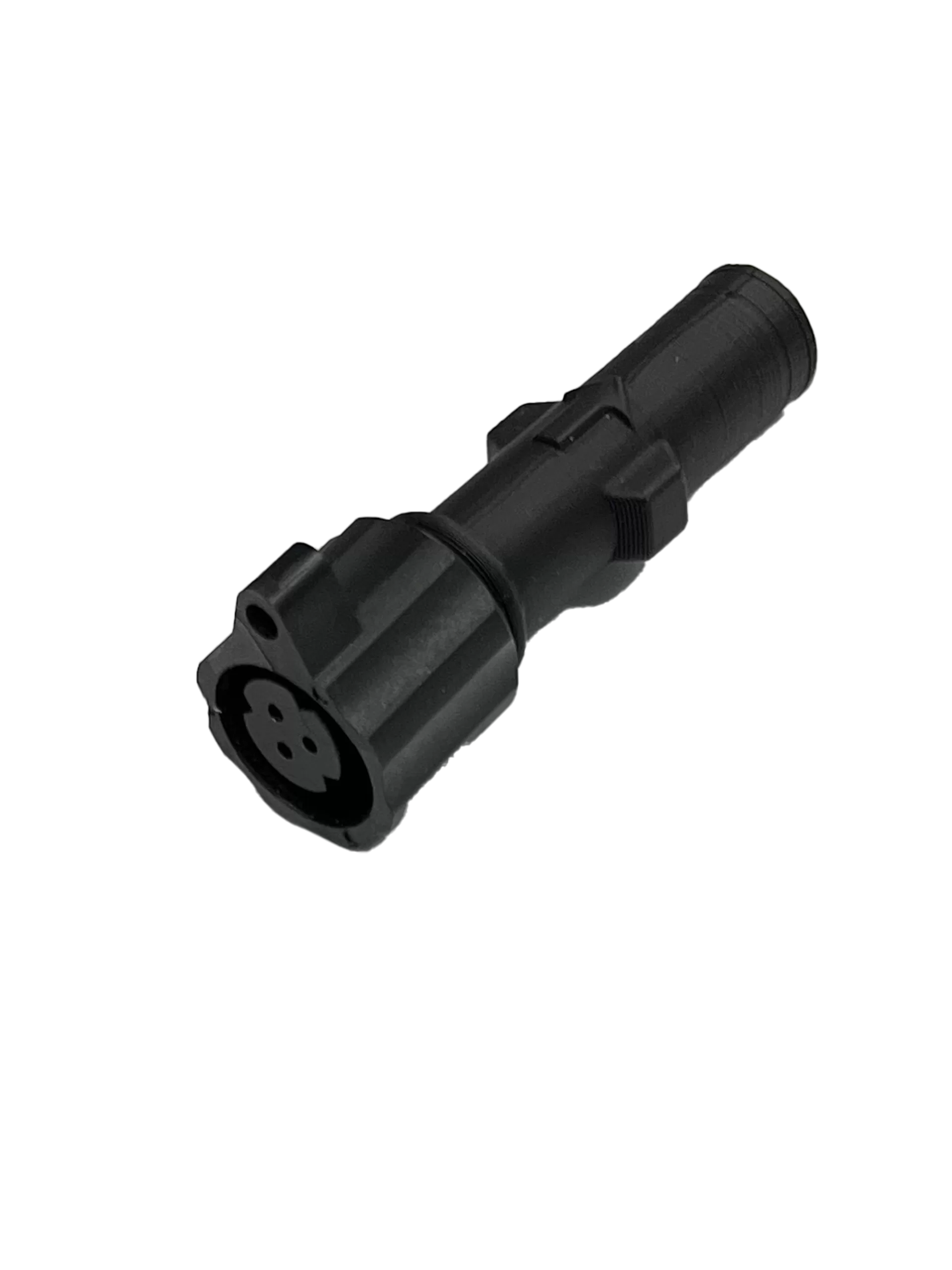

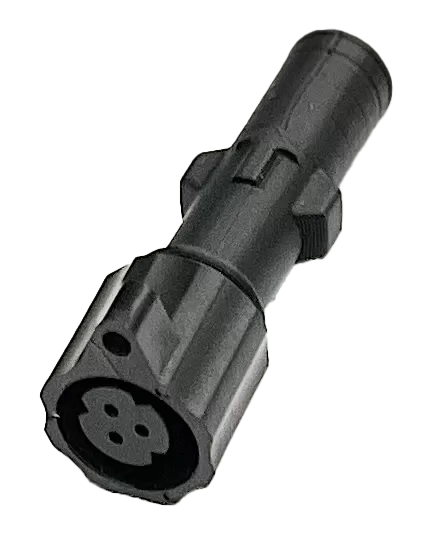

HYDROADAPT™
PRODUCT DETAILS

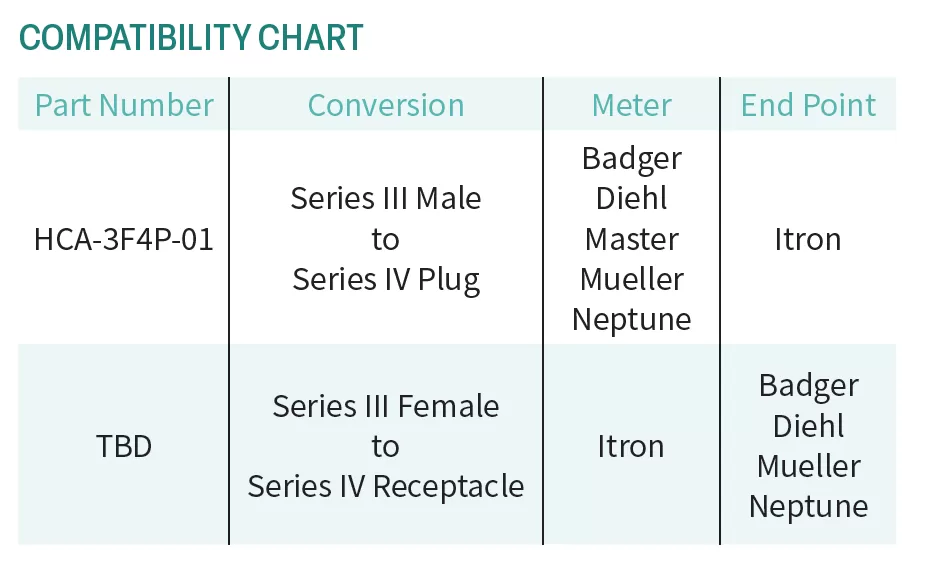

Hydroadapt™ enables on-site adaptability from one AMI connector type to another without field splicing. Hydroadapt is available with multiple connector configurations within the Hydroconn family.
Built to the same rigorous standards as all Hydroconn connectors, Hydroadapt delivers the waterproof performance and long-term reliability that utilities have trusted for years.
Features
- Special manufacturing process designed to vastly improve cable/connectors reliability for rugged field applications
- Post molded strain relief from cable to connector
- Internal/external totally bonded connector
- TPU-extruded cable jacket and molded connector
Mechanical Specifications
|
Size (HCA-3F4P-01)
|
Length: 2.24”; Diameter: 0.625”
|
|
Connector Material
|
Flexible TPU and glass-filled TPU
|
|
Contacts
|
Machined 22 AWG Copper Alloy
|
|
Contact Plating
|
5μ inches gold over 50μ Ni
|
|
Temperature Rating
|
-20°C to +80°C, Low temp cable flexibility
|
|
Sealing Method
|
AMR III: Patented Sealing Features with no parting lines
AMR IV: Serviceable O-ring in plug with no parting line in groove
|
|
Pressure Rating
|
Submersible to 30 meters
|
Electrical Specifications
|
Insulator
|
glass-filled thermoplastic
|
|
Current Rating 7
|
7.5 amps
|
|
Voltage Rating
|
300 V AC/RMS 50Hz
|
|
Insulation Resistance
|
5000 MΩ at 500 VDC
|
