SMC-1850
PRODUCT DETAILS

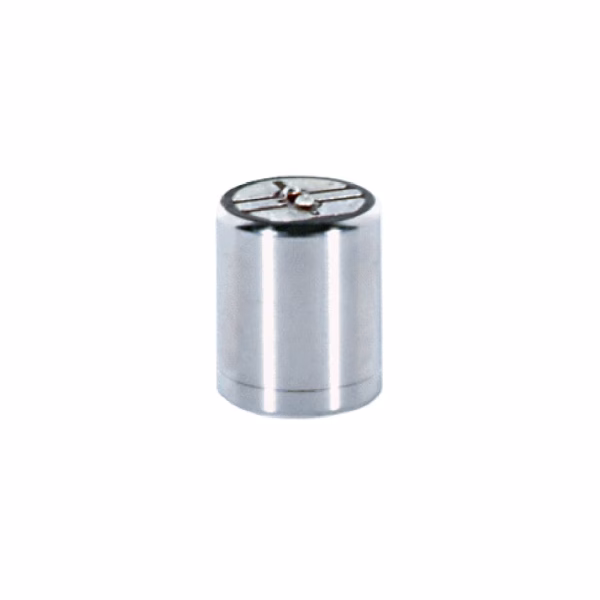

The SMC-1850 High-Temperature Geophone has been tested at 200ºC for more than 300 hours with no loss in performance specifications. Its design structure and super-strength magnetic field make the output of this small geophone equal to or greater than the output of larger vibration monitoring units. Its rotating dual-coil construction withstands severe shocks and rough handling. The patented PCB header provides easy and reliable electrical connections.
Features
- All units tested at 200ºC
- Ideal for VSP, triaxial, and gimbal downhole operations
- Full one-year warranty
- Small size, high output
- Patented PCB header
- 100 percent burn-in of basic units
Mechanical Specifications
|
Orientation
|
Omni (Vertical and Horizontal also available)
|
|
Moving Mass
|
6.6 g (0.23 oz)
|
|
Maximum Coil Excursion p-p
|
3.05 mm (0.12 in.)
|
|
Diameter
|
2.22 cm (0.875 in.)
|
|
Height
|
2.64 cm (1.04 in.)
|
|
Weight
|
44 g (1.52 oz)
|
|
Storage Temperature
|
–40°C to +100°C (–40 to +212°F)
|
|
Operating Temperature
|
–40°C to +200°C (–40 to +392°F)
|
ELECTRICAL SPECIFICATIONS @ 25°C
|
Frequency
|
15 Hz *
|
|
Spurious Frequency
|
365 Hz
|
|
Distortion at Vertical
|
< 1%
|
|
Coil Resistance
|
1850 Ω *
|
|
Open-Circuit Sensitivity
|
40.16 V/m/s (1.02 V/i/s)
|
|
Sensitivity at 70% Damping
|
27.56 V/m/s (.70 V/i/s)
|
|
Open-Circuit Damping
|
47%
|
*Other frequences and resistances available.
