OBX2-125
OBX2-125: Ocean Bottom Recorder
PRODUCT DETAILS

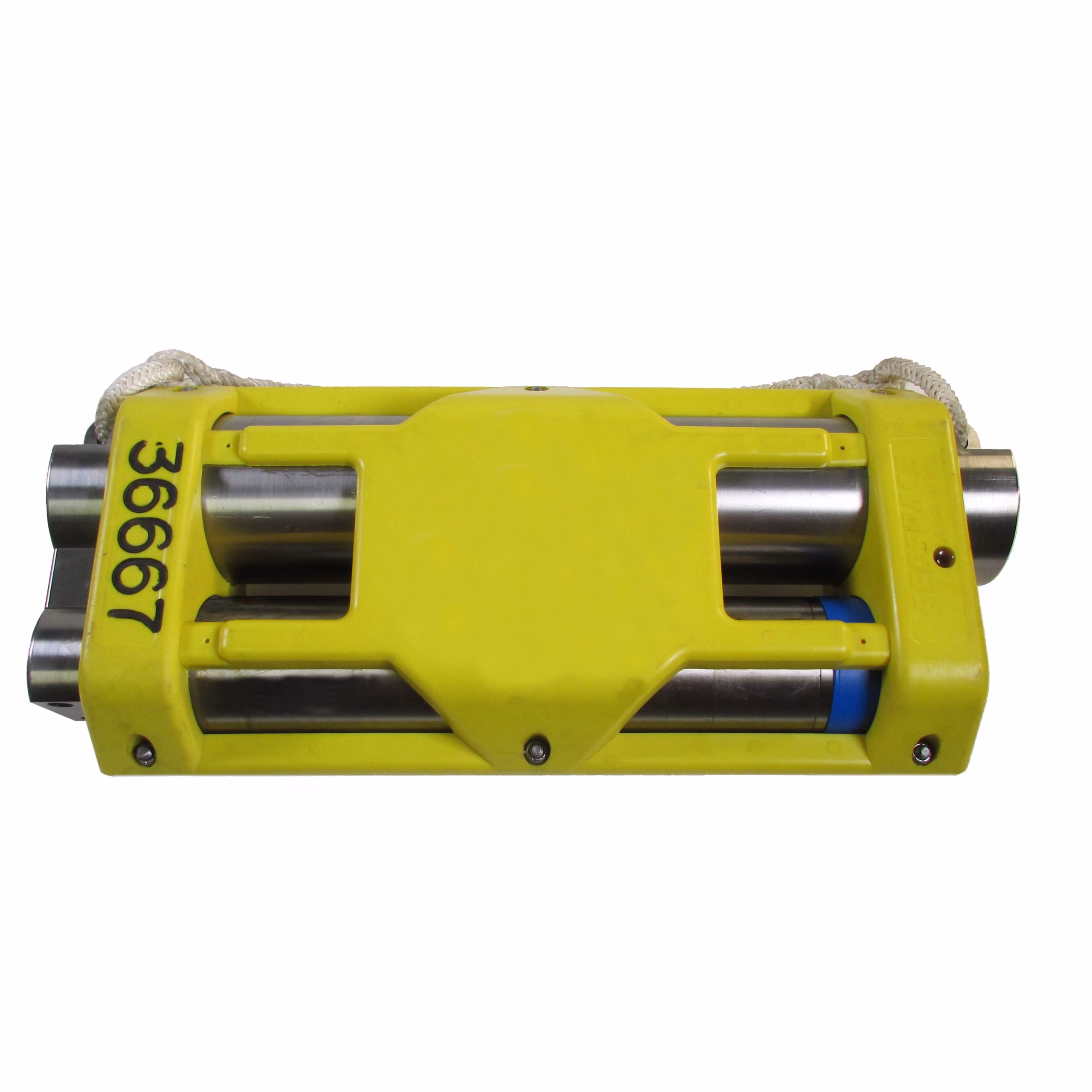

The OBX2-125 is designed for extended-duration seabed ocean bottom seismic data acquisition. Nodes can be deployed in depths down to 3,450 meters with continuous recording for up to 125 days.
Features
- Continuous, cable-free 4C autonomous recording
- Battery module: 125-day operation
- Built-in, full-resolution test generator
- Solid-state flash memory: 32 GB per channel
- CSAC clock
- Internal Heading Sensor
- 3 Component Magnetic Sensor
- ±5° Accuracy
- Measurements written to header every 2,000 samples
GS-ONE OMNI Geophone
Physical Specifications
|
Moving Mass
|
13.2 g
|
0.466 oz
|
|
Maximum coil excursion p-p
|
4.06 mm
|
0.16 in.
|
|
Minimum coil excursion p-p
|
1.02 mm
|
0.04 in.
|
|
Diameter
|
30.5 mm
|
1.2 in.
|
|
Height
|
40.7 mm
|
1.6 in.
|
|
Weight
|
130 g
|
4.60 oz
|
|
Operating and Storage Temperature Range
|
–40°C to +100°C
|
–40°F to +212°F
|
Electrical Specifications
All parameters are specified with 7.5 kΩ load at 25°C in all tilt positions unless otherwise stated.
|
Frequency
|
15 Hz
|
|
Spurious Frequency
|
>160 Hz
|
|
Distortion at Horizontal
|
0.05% Typical
|
|
Resistance with 7.5 kΩ load
|
1450 Ω
|
|
Sensitivity at 70% Damping
|
69.2 V/m/s (1.75 V/in/s)
|
|
Damping
|
70%
|
|
Distortion at all tilt angles
|
<0.2% measured at 15 Hz with 0.2 in/s p-p
|
Hydrophone Deepender™ 5000-X
Physical Specifications
|
Maximum Operating Pressure
|
34.5 MPa (5,000 psi)
|
|
Maximum Working Depth
|
3450 m (11,319 ft.)
|
|
Operating Temperature Range
|
–10 to +75°C (+14 to 167°F)
|
|
Outside Diameter
|
50.8 mm (2.0 in.)
|
|
Length
|
38.1 mm (1.5 in.)
|
Electrical Specifications
|
Nominal Capacitance (at 25°C 1atm)
|
20.0 nanofarads
|
|
Voltage Sensitivity
|
4.0 μV/μBar
|
|
Sensitivity (dBv ref 1μPa @ 25°C)
|
–181.9 dB re 1nC/μPa
|
|
Frequency Response (into 2 MΩ load)
|
3 –15,000 Hz
|
Mechanical Specifications (Housing)
|
Length
|
475 mm
|
18.7 in.
|
|
Width
|
208 mm
|
8.2 in.
|
|
Height
|
106 mm
|
4.25 in.
|
|
Weight in Air
|
17.0 kg
|
37.5 lbs.
|
|
Weight in Seawater
|
9.9 kg
|
21.8 lbs.
|
|
Maximum Operating Pressure
|
34.5 MPa/345 Bar
|
5,000 psi
|
|
Maximum Operating Depth
|
3,450 M
|
11,316 ft.
|
|
Operating Temperature Range
|
–5°C to +35°C
|
+23°F to +95°F
|
|
Storage Temperature Range
|
–10°C to +40°C
|
+14°F to +104°F
|
Electrical Specifications
Digitized 4C Recording Station: 4 Channel, 24 Bit A/D Digitizer 3C Orthogonal oriented GS-One OMNI 15 Hz Geophones 1 DEEPENDER Hydrophone
|
Digitization
|
24-bit Delta-Sigma
|
|
Sample Interval
|
0.25, 0.5, 1, 2, 4 ms
|
|
Pre-amplifier Gains
|
0, 6, 12, 18, 24, 30, 36 dB
|
|
Maximum Input Signal
|
1.8 Vrms
|
|
Equivalent Input noise (@2ms sample interval)
|
0.17 μVrms
|
|
Gain Accuracy
|
Better than 1%
|
|
Anti-alias Filter
|
83% Nyquist
|
|
Instantaneous Dynamic Range
|
124 dB @ 2 ms sample interval
|
|
THD
|
<0.2%
|
|
Distance Between Digitizer & Farthest Sensor
|
<18 cm
|
|
Distance Between All Sensors
|
<13 cm
|
|
Flash Memory
|
32 GB per channel
|
|
Frequency Response
|
1 Hz – 1650 Hz @ ¼ ms sample interval
|
|
Battery Module
|
125-day operation
|
