SRD-500S

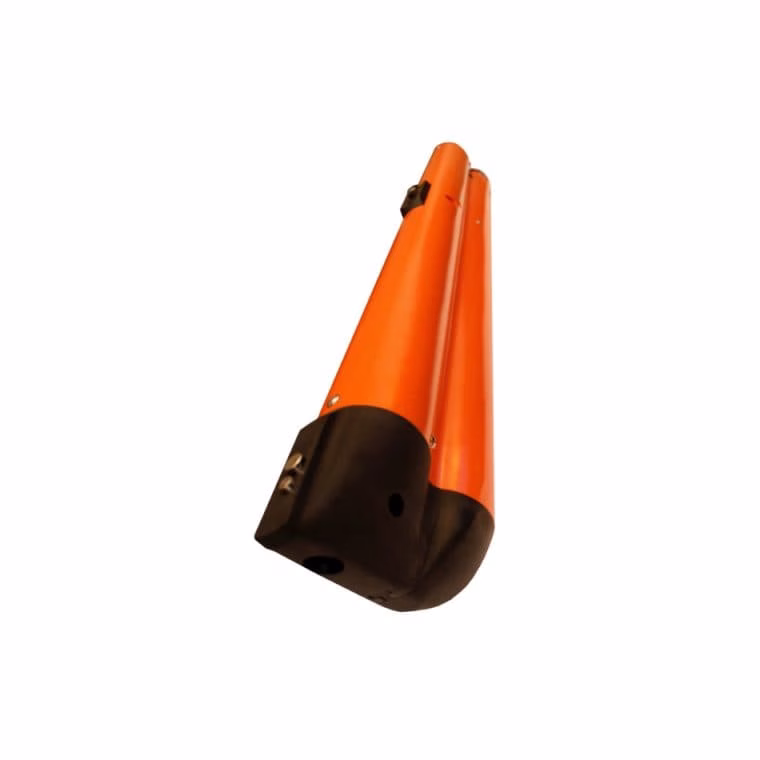

SRD-500S: Streamer Recovery Device
PRODUCT DETAILS
The SRD-500S is the latest development in automatic sealed streamer retriever devices. All critical components are sealed inside its housing, providing new levels of reliability against seawater corrosion and marine life fouling.
Features
- Acoustically friendly device
- Elimination of sea life growth around lift bag
- Improved corrosion-resistance from sealing of internal, mission-critical parts
- Detonation pressure transmitted to the sensor via an isolating diaphragm
- Improved device reliability results from sealing of components to seawater after deployment
Technical Specifications
|
Buoyancy in Water
|
1.8 kg (4.0 lbs.)
|
|
Weight in Air
|
8.2 kg (18 lbs.)
|
|
Maximum Lift
|
227 kg (500 lbs.)
|
|
Gas Source
|
CO2
|
|
Activator
|
Electronically Activated Squib
|
|
Activation Depth
|
48m, 75m, 100m, or Programmable 20 to 200m
|
|
Batteries
|
2 each 3V Extended Life, Non-magnetic Lithium
|
|
Overall Length
|
117.5 cm (46.25 in.)
|
|
Height
|
16.5 cm (6.5 in.)
|
|
Width
|
8.6 cm (3.375 in.)
|
